CN-S5

  • Brand Name :
    DJJX
  • Product Model :
    CN-S5
  • Product Series :
    Forged Universal Joints
  • Product Brief :
    Generally used as a linkage between two misaligned shafts at a large angle. The needle bearing universal joint is fitted with lubricated needle bearings.
Typical applications:
Generally used as a linkage between two misaligned shafts at a large angle. The needle bearing universal joint is fitted with lubricated needle bearings.

Advantages of DJJX’s Universal Joints:
?Maintenance free bearings
?Choice of solid hubs, bored hubs or bored with keyway connection
?Max. angle 35 degree
?Max. speed – 4000 rpm
?Available in various materials
?All components CNC machined with precision from steel bar: No cheap castings or powdered metal parts, resulting in better overall and consistent performance
?Subtle and clever design innovations that optimize performance while minimizing costs
?Ability to manufacturer according to your provided drawing or samples

Variations offered by DJJX:
?Materials for midsection: o8F, 20Cr
?Materials for hub: 40Cr, 45# steel

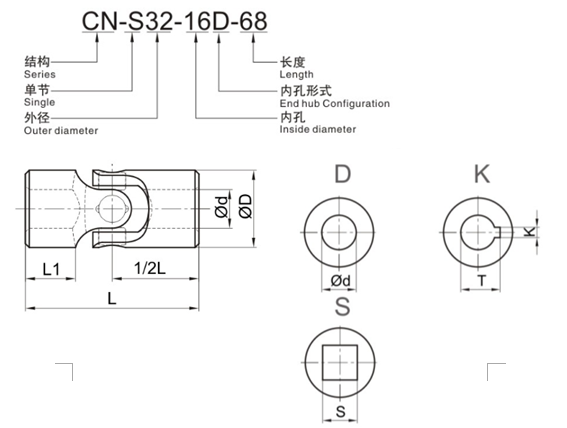

Part NO. ￠D  ￠d  L  L1  1/2L  S  K T
（H7）  (H11)  (JS9)
CN-S36  36  18  78 21.5 39 18  6  20.8
CN-S40  40  20  86 22  43  20  6 22.8
CN-S50  50  25  108 28 54 25  8 28.3
