Metric universal joint
- Brand Name :DJJX
- Product Model :PB-S20-10D-68
- Product Series :
- Product Brief :Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing e...
Typical applications:
Can be used as a linkage, or transmission, between two intentionally misaligned shafts, rather than just as a coupling .Lawn and garden equipment, conveyors and material handling equipment, food processing equipment,Forklift and so on.
Advantages of DJJX’s Universal Joints, over those of other manufacturers:
?Many sizes available
?Max. angle 35 degree
?Available in various materials
?All subcomponents very precisely machined from bar: No cheap castings or powdered metal parts, resulting in better overall and more consistent performance
?Several subtle design innovations that optimize performance and reduce cost
?Could manufacture products according to your provided drawing or samples
Variations offered by DJJX Couplings:
?Materials for midsection: 20Cr,40Cr
?Materials for hub: 40Cr,45#steel
?Materials for pin: GCr15/20Cr

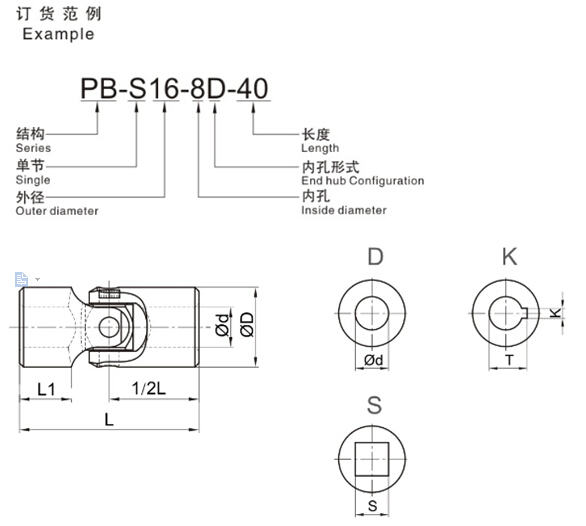

Part NO. | ¢D |
¢d (H7) |
L | L1 | 1/2L |
S (H11) |
K (JS9) |
T |
PB-S13 | 13 | 6 | 40 | 13 | 20 | |||
PB-S16 | 16 | 8 | 40 | 12 | 20 | 8 | 2 | 9 |
PB-S20 | 20 | 10 | 45 | 12.5 | 22.5 | 10 | 3 | 11.4 |
PB-S25 | 25 | 12 | 50 | 13 | 25 | 12 | 4 | 13.8 |
PB-S29 | 29 | 14 | 65 | 18 | 32.5 | 14 | 5 | 16.3 |
PB-S32 | 32 | 16 | 68 | 17.5 | 34 | 16 | 5 | 18.3 |
PB-S35 | 35 | 18 | 78 | 21.5 | 39 | 6 | 20.8 | |
PB-S37 | 37 | 20 | 82 | 23 | 41 | 6 | 22.8 | |
PB-S50 | 50 | 25 | 108 | 28 | 54 | 8 | 28.3 | |
PB-S60 | 60 | 30 | 178 | 58 | 89 | 8 | 33.3 | |
PB-S69 | 69 | 35 | 200 | 62.5 | 100 | 10 | 38.3 | |
PB-S83 | 83 | 40 | 191 | 54 | 95.5 | 12 | 43.8 | |
PB-S89 | 89 | 45 | 250 | 74 | 125 | 14 | 48.8 | |
PB-S99 | 99 | 50 | 270 | 80 | 135 | 14 | 53.8 |
